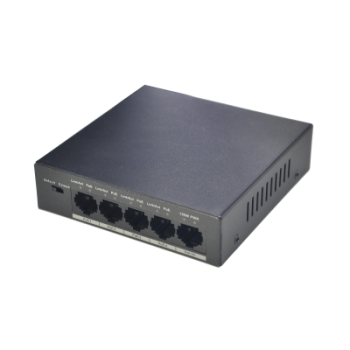

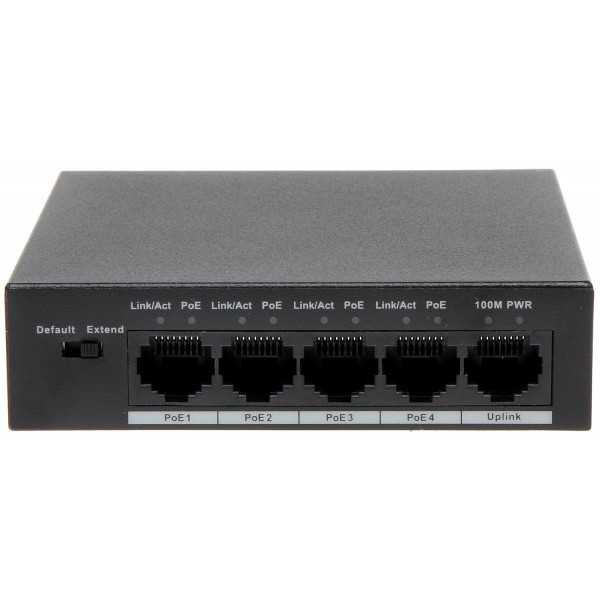

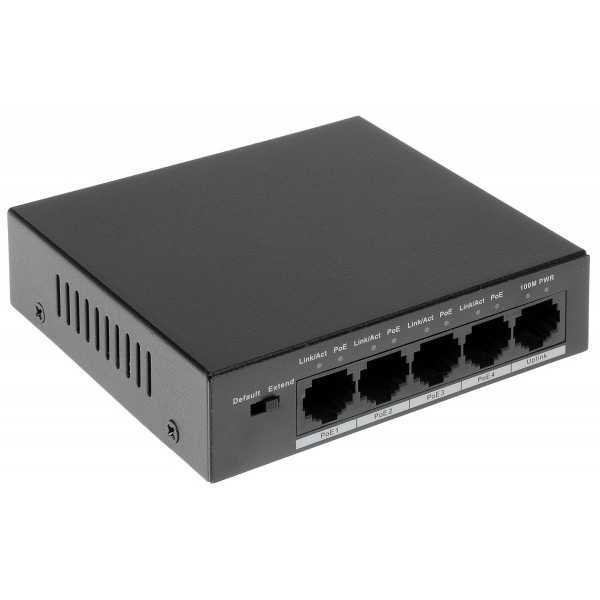

SWITCH DAHUA DH-PFS3005-5ET-L / 5 PORTS 10/100 MBPS
      SWITCH DAHUA DH-PFS3005-5ET-L / 5 PORTS 10/100 MBPS
      SWITCH DAHUA DH-PFS3005-5ET-L / 5 PORTS 10/100 MBPS
      SWITCH DAHUA DH-PFS3005-5ET-L / 5 PORTS 10/100 MBPS

      SWITCH DAHUA DH-PFS3005-5ET-L / 5 PORTS 10/100 MBPS

      Review (0)
      165,000 TND
      Tax Included
      Disponible

      Two-layer PoE Ethernet switch
      MAC auto study and aging, MAC address list capacity is 1K
      Conform IEEE802.3, IEEE802.3u and IEEE802.3X standards
      Default Mode: The device works as a general switch and all ports support 10/100Mbps auto-negotiation.
      Extend Mode: VLAN isolation is enabled. Ports 1-4 will be isolated respectively (10Mbps auto-negotiation), but they can communicate with the Uplink port. Besides, the transmission distance of power and network data is up to 250m.

      Quantity :

      Technical Specification

      Model

      DH-PFS3005-4P-58

      Ethernet Port

      1*10/100 Base-T

      4*10/100 Base-T (PoE power supply)

      PoE Power Consumption

      Each power ≤30W, Total≤58W

      PoE Protocol

      IEEE802.3af, IEEE802.3at

      Switching Capacity

      1Gbps

      Packet Forwarding Rate

      744Kpps

      Packet Buffer Memory

      448Kb

      MAC Table Size

      1K

      Flow Control

      Enable

      Application Humidity

      10%~90%

      Power

      Default DC51V/1.25A power adapter

      Lightning Protection

      Common Mode 2KV

      Differential Mode 1KV

      Working Temperature

      -10°C~50°C

      Weight

      259g

      Dimension(W×D×H)

      100mm×100mm×26mm
      DAHUA
      PFS3005-4P-58
